Don’t let their name fool you. KOBELCO conventional excavators are anything but. With high-quality construction and low-cost maintenance, they’re as cost-effective as they are dependable.

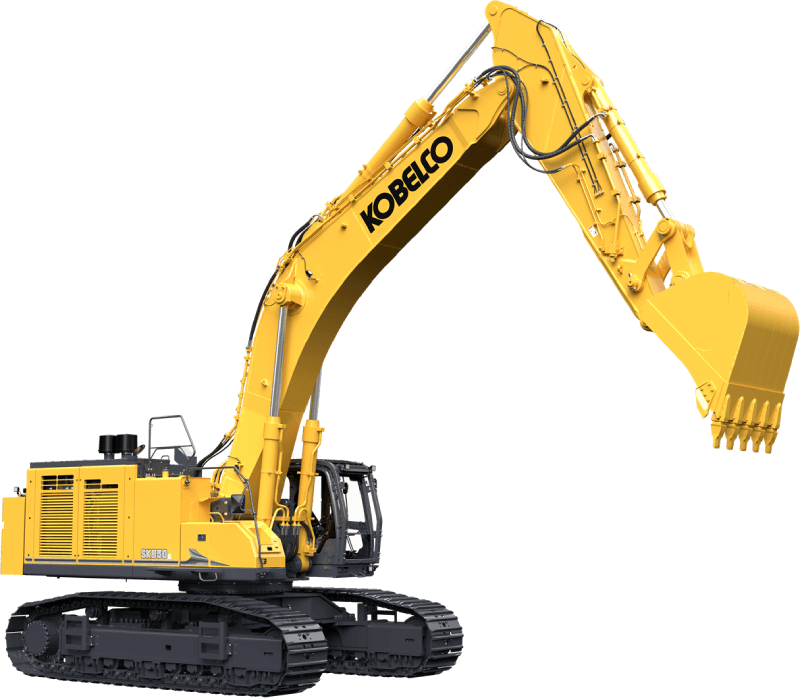

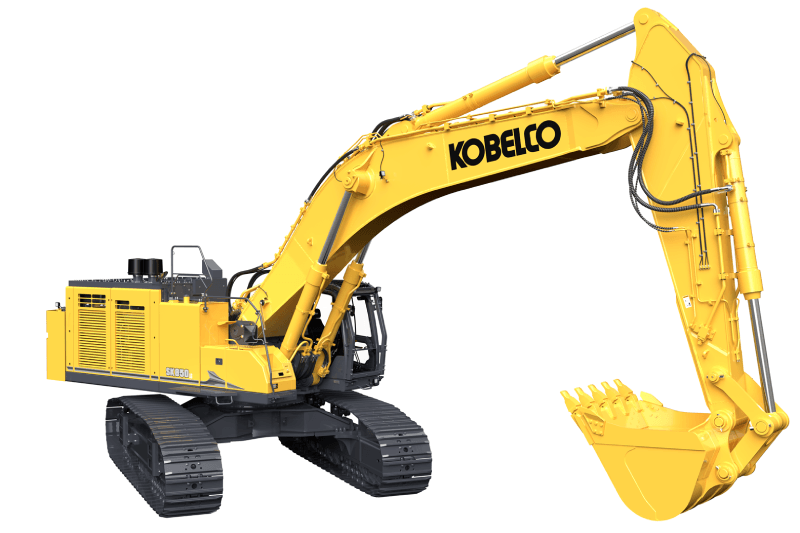

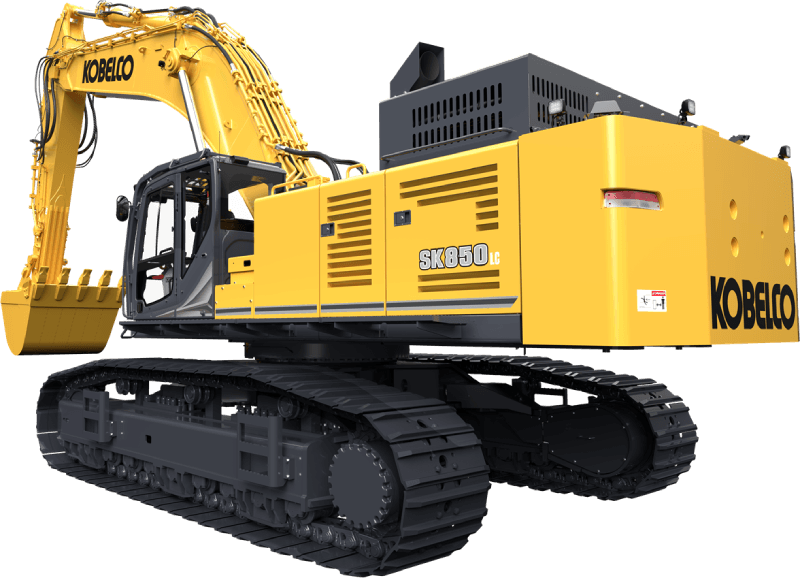

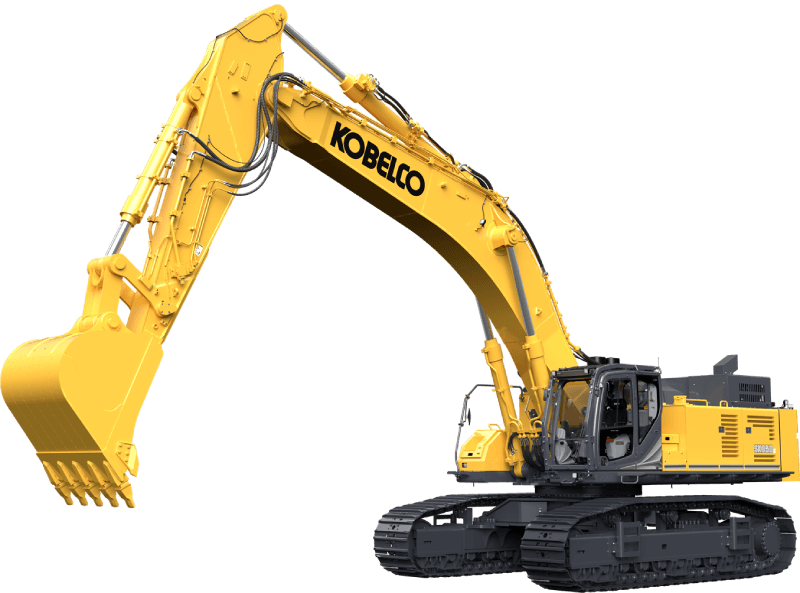

The KOBELCO SK850LC-11 is a high-performance, large-class excavator engineered to deliver exceptional power, efficiency, and durability for the most demanding applications. Powered by a robust engine producing up to 512 HP (382 kW) and operating at more than 80 metric tons, it offers outstanding digging force, lifting capability, and jobsite productivity. Advanced hydraulic systems minimize energy loss while maximizing fuel efficiency, allowing for strong performance with lower operating costs. Designed with operator comfort, stability, and long-term reliability in mind, the SK850LC-11 is built to handle heavy civil, quarry, and mass excavation work with confidence.
| Overall Height (to top of boom) | 18' 10" (5,750 mm) |
| Overall Width | 14' 7" (4,450 mm) |
| Ground Clearance of Rear End | 5' 1" (1,560 mm) |
| Ground Clearance | 33.5" (850 mm) |
| Tail Swing Radius | 15' (4,580 mm) |
| Distance From Center of Swing To Rear End | 14' 8" (4,480 mm) |
| Tumbler Distance | 16' 10" (5,140 mm) |
| Shoe Width | 35.4 (900 mm) |
| Overall Width of Upperstructure | 10' 6" (3,190 mm) |
| Travel Speed | 2.6 mph (4.2 kph) / 1.6 mph (2.6 kph) |
| Drawbar Pulling Force | 152,400 lbf (678 kN) |
| Operating Weight | 190,700 lbs (86,500 kg) |
| Model | Isuzu 6WG1 |
| Power Output | 512 hp (382 kW) |
| Max. Torque | 1620 lbf (2200 Nm) |
| Displacement | 956.9 in³ (15.68 ltr) |
| Fuel Tank | 253.6 gallons (US) (960 ltr) |
| Number of Main Pumps | 2 |
| Bucket Digging Force | 90,600 lbf (403 kN) |
| Arm Crowding Force | 69,900 lbf (311 kN) |
