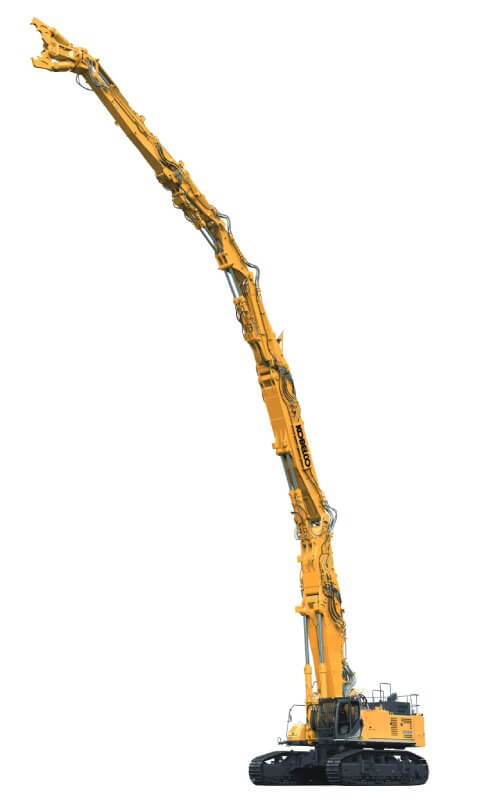

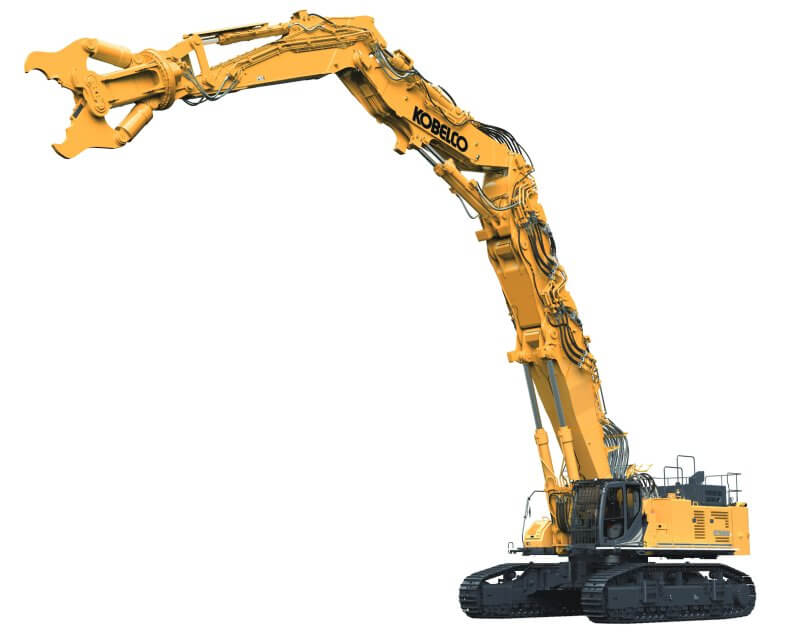

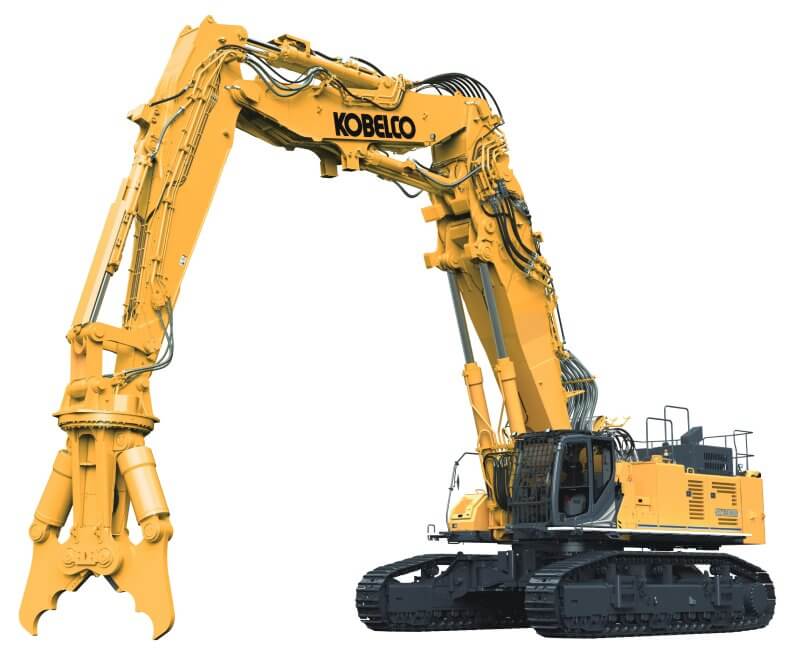

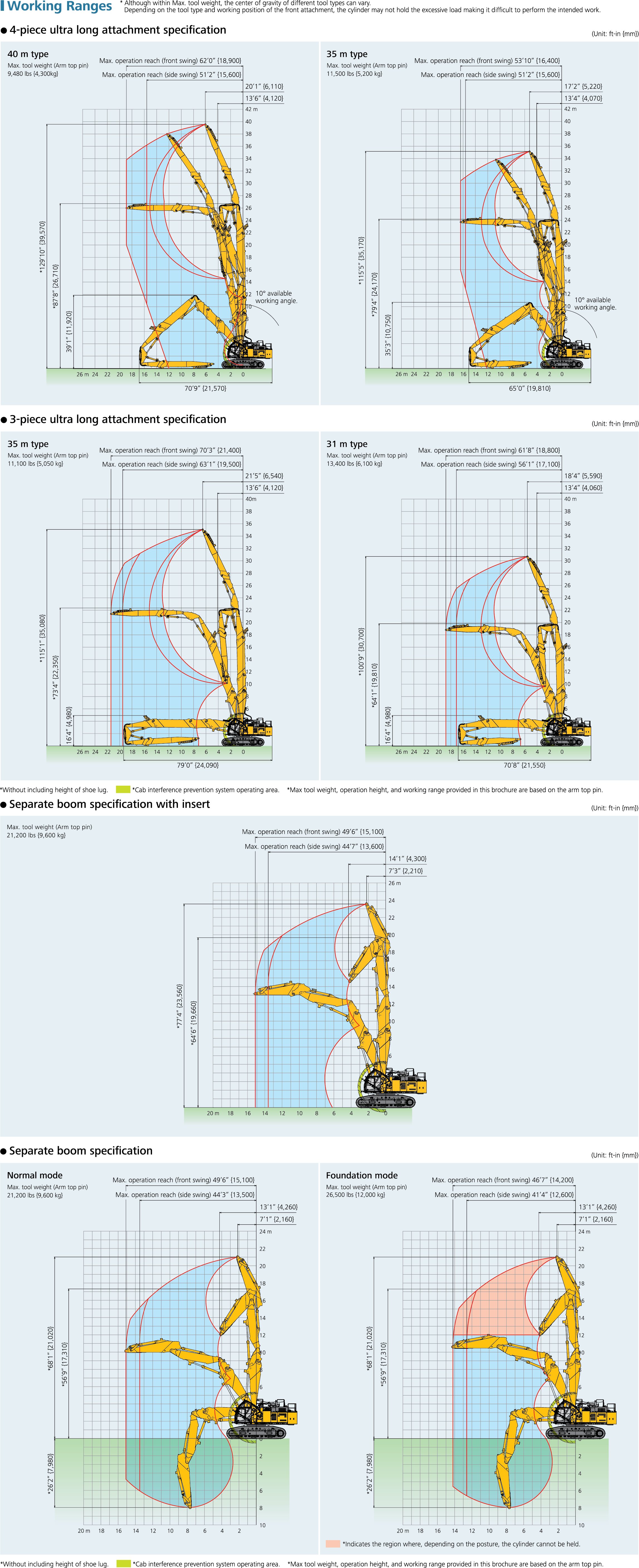

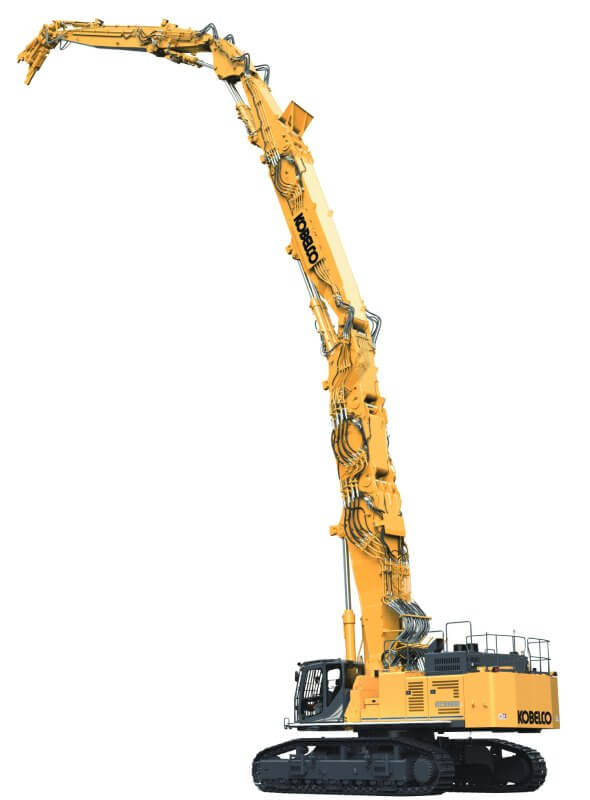

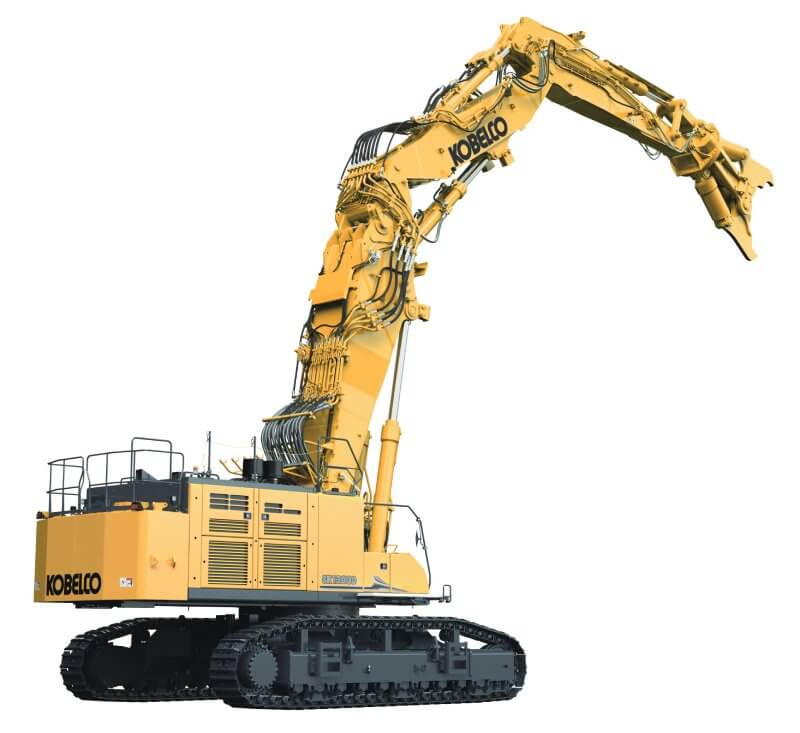

The KOBELCO SK1300DLC-11 sets a new standard in ultra-high reach demolition, combining unmatched size, strength, and versatility for the most demanding projects. As one of the largest OEM-built demolition excavators, it delivers up to 40 meters of working height with KOBELCO's advanced NEXT ADVANCE attachment system, allowing operators to handle heavier tools at greater heights with exceptional stability. Designed for flexibility, it offers multiple boom configurations to tackle everything from high-reach demolition to foundation work, while its modular design enables efficient transport and faster setup. Built for productivity, safety, and adaptability, the SK1300DLC-11 is engineered to take demolition performance to the next level.
| Overall Width | 17' (5,190 mm) |
| Tail Swing Radius | 15' 10" (4,820 mm) |
| Shoe Width | 2' 2" (650 mm) |
| Overall Width of Upperstructure | 11' 3" (3,420 mm) |
PERFORMANCE
| Swing Speed | 3.3 rpm |
| Swing Torque | 232,332 lbf/ft (315 kNm) |
WEIGHT
| Operating Weight | 303,600 lbs (137,600 kg) |
ENGINE
| Model | Isuzu 6WG1 |
| Power Output |
512.3 hp (382 kW) |
| Displacement | 956.9 in³ (15.68 ltr) |
| Fuel Tank | 253.6 gallons (US) (960 ltr) |
HYDRAULIC SYSTEM
