LONG REACH

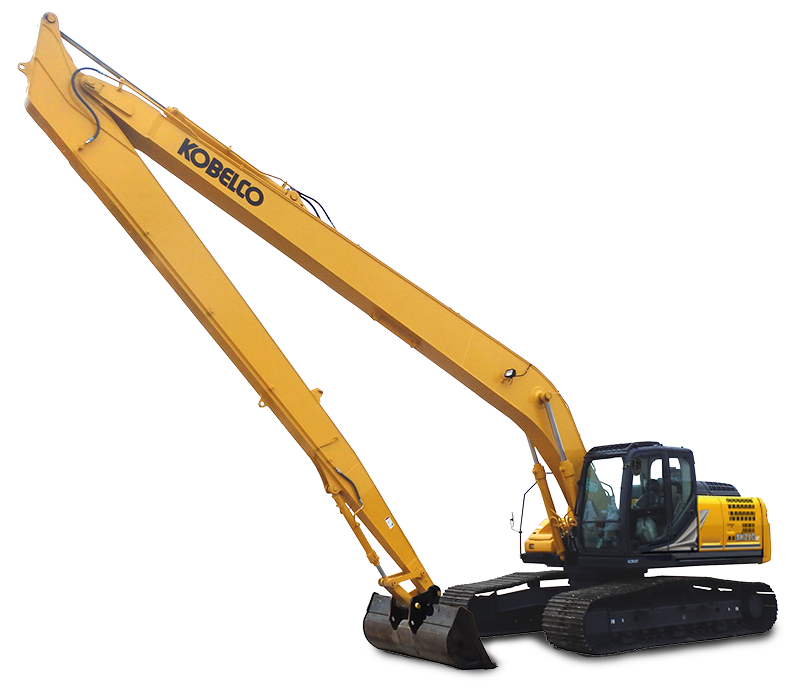

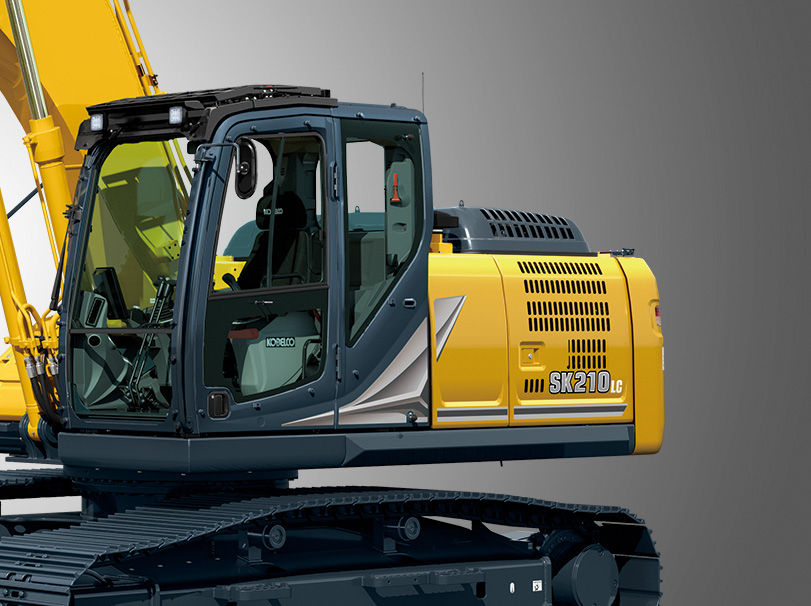

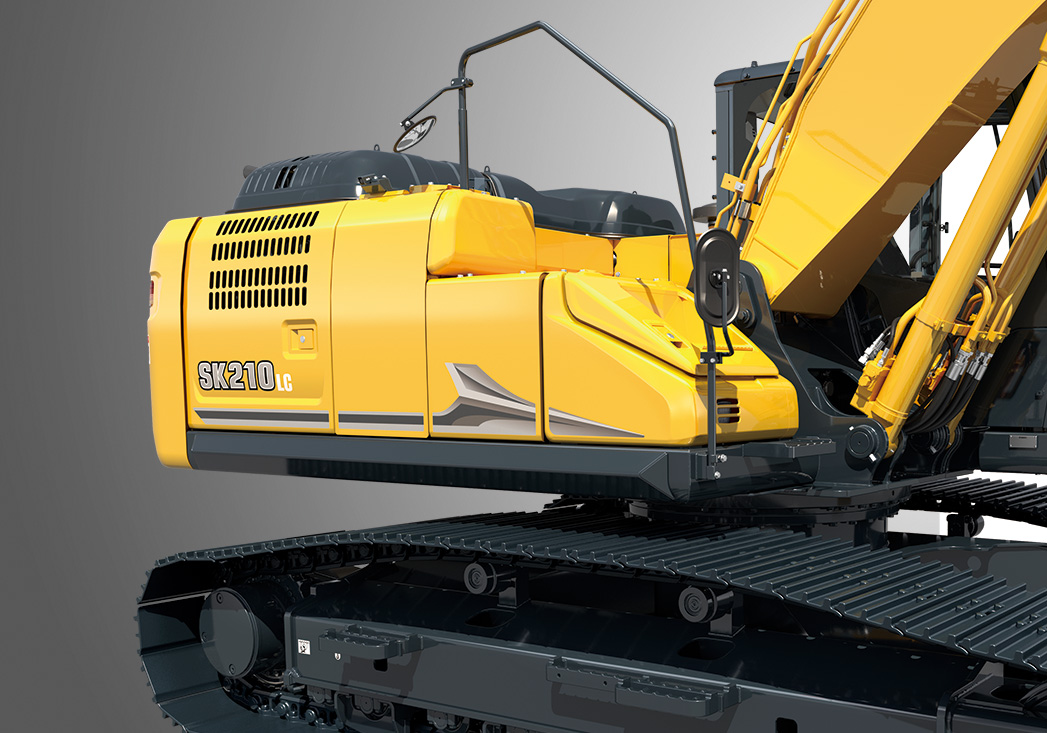

SK210LC-11 Long Reach

  • Engine Power - 160 hp (119 kW)
  • Operating Weight - 52,900 lbs (24,000 kg)

KOBELCO Long Reach excavators have the heavy-duty hydraulic fittings and connectors required to reliably lift huge loads from seemingly impossible distances. The SK210LC-11 LR has a maximum dig reach of 51’ 11” to safely and securely tackle a wide variety of dredging, ditch cleaning and sloping jobs.

Overall Height (to top of boom)10' 5" (3,170 mm)
Overall Width10' 5" (3,180 mm)
Ground Clearance of Rear End3' 6" (1,060 mm)
Ground Clearance16.7" (425 mm)
Tail Swing Radius9' 7" (2,910 mm)
Distance From Center of Swing To Rear End9' 6" (2,900 mm)
Tumbler Distance12' (3,660 mm)
Track Gauge7' 10" (2,390 mm)
Shoe Width31.1 (790 mm)
Overall Width of Upperstructure9' 4" (2,850 mm)

PERFORMANCE

Travel Speed3.7 mph (6 kph) / 2.2 mph (3.6 kph)
Drawbar Pulling Force51,300 lbf (228 kN)

WEIGHT

Operating Weight50,000 lbs (22,700 kg)

ENGINE

ModelYanmar 4TN107FTT
Power Output 170 hp (127 kW)
160 hp (119 kW)
Max. Torque594 lbf (805 Nm)
Displacement278.7 in³ (4.57 ltr)
Fuel Tank84.5 gallons (US) (320 ltr)

HYDRAULIC SYSTEM

Number of Main Pumps 2

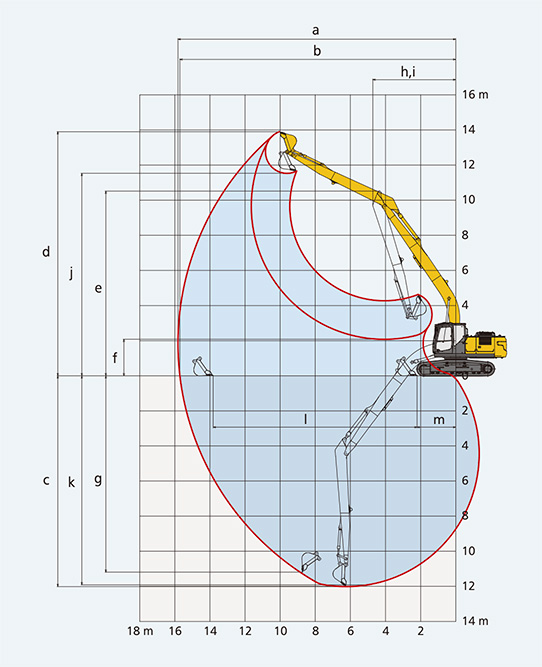

KOBELCO SK210LC-11 Long Reach Dimension Diagram
Bucket Digging Force35,300 lbf (157 kN)
Arm Crowding Force25,200 lbf (112 kN)
