Special jobs require specially equipped machines. KOBELCO has engineered these specialty excavators to take on unique applications that no ordinary excavator could touch.
Take command of your workspace and reach new heights of productivity with the KOBELCO SK260DLC-11 Material Handler. The new machine boom and arm expands your work area, improves efficiency in gathering operations, and supports transport loadability efficiently.

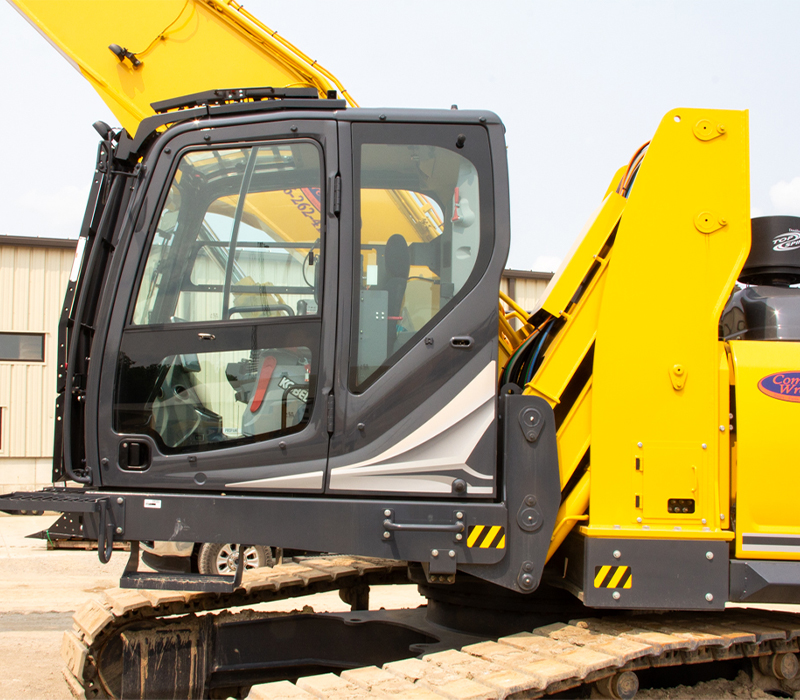

And like all KOBELCO excavators, the SK260DLC-11 is as comfortable on the inside as it is powerful on the outside. It includes exclusive operator comforts like a heated air-ride suspension seat, multi-vent air conditioner, ergonomic adjustable lever angles and joystick, and interior LED lights and a tilting left console for easy entry and exit.
| Ground Clearance of Rear End | 3' 6" (1,070 mm) |
| Ground Clearance | 19.1" (485 mm) |
| Tail Swing Radius | 10' 1" (3,070 mm) |
| Tumbler Distance | 12' 8" (3,850 mm) |
| Shoe Width | 1' 12" (600 mm) |
| Overall Width of Upperstructure | 10' 3" (3,120 mm) |
| Swing Speed | 7.4 rpm |
| Swing Torque | 63,000 lbf/ft (85.9 kNm) |
| Operating Weight | 74,700 lbs (33,900 kg) |
| Model | Yanmar 4TNV107FTT |
| Power Output |
208 hp (155 kW) 194 hp (145 kW) |
| Displacement | 278.7 in³ (4.57 ltr) |
| Range | 2-Pin |
| A - Max. operation reach (arm top) | 38'1" {11,610} |
| B - Max. operation depth (arm top) | 17'0" {5,190} |
| C - Max. operation height (arm top) | 42'3" {12,870} |
| D - Radius of attachment at max. operation height (arm top) | 12'4" {3,760} |
| E - Max. dumping height at arm in position (arm top) | 12'9" {3,880} |
| F - Radius of attachment at arm in position (arm top) | 6'3" {1,910} |
| G - Min. front swing radius | 7'3" {2,200} |
| H - Height at min. front swing radius | 29'6" {8,990} |
| I - Elevation stroke (min. height) | 10'9" {3,280} |
| J - Elevation stroke (stroke) | 8'7" {2,610} |
| K - Elevation stroke (max. height) | 19'4" {5,890} |
