SPECIALTY EXCAVATORS

Special jobs require specially equipped machines. KOBELCO has engineered these specialty excavators to take on unique applications that no ordinary excavator could touch.

LONG REACH


HIGH & WIDE


DEMOLITION

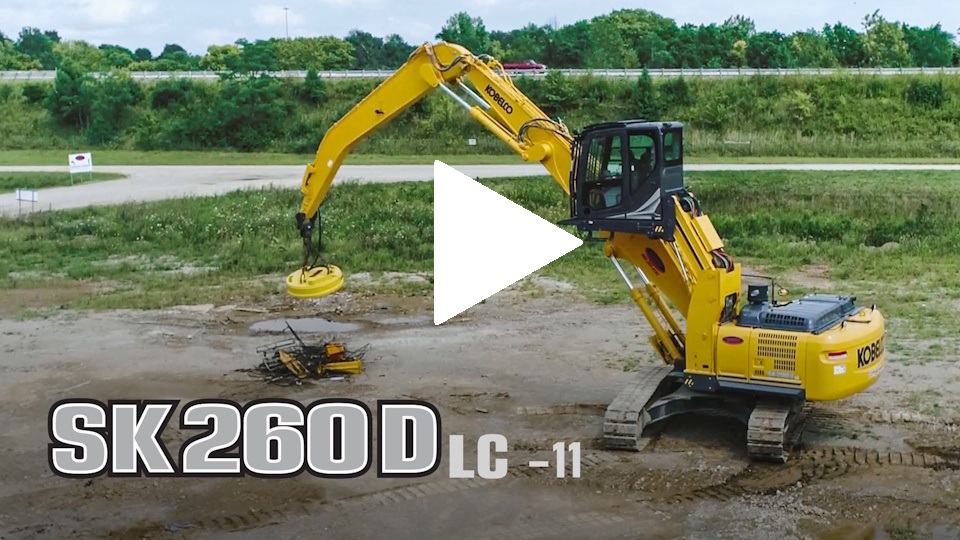

SK260DLC-11 Scrap Loader

  • Engine Power - 194 hp (145 kW)
  • Operating Weight - 74,300 lbs (33,700 kg)

Take command of your workspace and reach new heights of productivity with the KOBELCO SK260DLC-11 Scrap Loader. The new machine boom and arm expands your work area, improves efficiency in gathering operations, and supports transport loadability efficiently.

And like all KOBELCO excavators, the SK260DLC-11 is as comfortable on the inside as it is powerful on the outside. It includes exclusive operator comforts like a heated air-ride suspension seat, multi-vent air conditioner, ergonomic adjustable lever angles and joystick, and interior LED lights and a tilting left console for easy entry and exit.

Ground Clearance of Rear End3' 6" (1,070 mm)
Ground Clearance19.1" (485 mm)
Tail Swing Radius10' 1" (3,070 mm)
Tumbler Distance12' 8" (3,850 mm)
Shoe Width1' 12" (600 mm)
Overall Width of Upperstructure10' 3" (3,120 mm)

PERFORMANCE

Swing Speed7.4 rpm

WEIGHT

Operating Weight74,300 lbs (33,700 kg)

ENGINE

ModelYanmar 4TNV107FTT
Power Output 208 hp (155 kW)
194 hp (145 kW)

HYDRAULIC SYSTEM
